Kia PV5 WAV

Accessibility meets zero-emission mobility. The Kia PV5 WAV is designed to provide inclusive travel for wheelchair users, with spacious interiors, flexible access solutions and the comfort of electric drive.
Register your Interest Today ->

Ramp Capacity

300+ kg

Range (LR)

256 mi

Conversion

Factory

DC Fast Charge

30 min

Kia PV5 WAV

Accessible transport, reimagined for the electric age. The Kia PV5 WAV (Wheelchair Accessible Vehicle) is a factory-built conversion developed in-house by Kia — not an aftermarket adaptation. Built on the flat-floored E-GMP.S platform, it features a side-loading ramp, universal belt fastening and a spacious cabin designed specifically to accommodate wheelchair users with dignity and ease.

Factory WAV — Not an Aftermarket Conversion

Unlike traditional wheelchair accessible vehicles built by third-party converters, the PV5 WAV is designed and built by Kia at the factory. The conversion is fully integrated into the vehicle structure — no compromises to body integrity, no warranty complications and no additional conversion waiting time.

The side-loading ramp supports a wheelchair and occupant weighing over 300 kg, making it suitable for most power-wheelchair users. The universal belt fastening system secures any wheelchair configuration safely and quickly. The flat E-GMP.S floor — a natural advantage over converted diesel vehicles — means no floor drops and no structural compromise.

Factory-Built WAV — Side-Loading Ramp — Universal Belt System

Powertrain Overview

DrivetrainFront-Wheel Drive
Motor Output163 PS / 250 Nm
Battery (Standard)51.4 kWh
Battery (Long Range)71.2 kWh
Range (SR / LR)183 / 256 miles WLTP
DC Fast Charging150 kW (10–80% in 30 min)
AC Charging11 kW
Conversion TypeFactory-built (Kia)

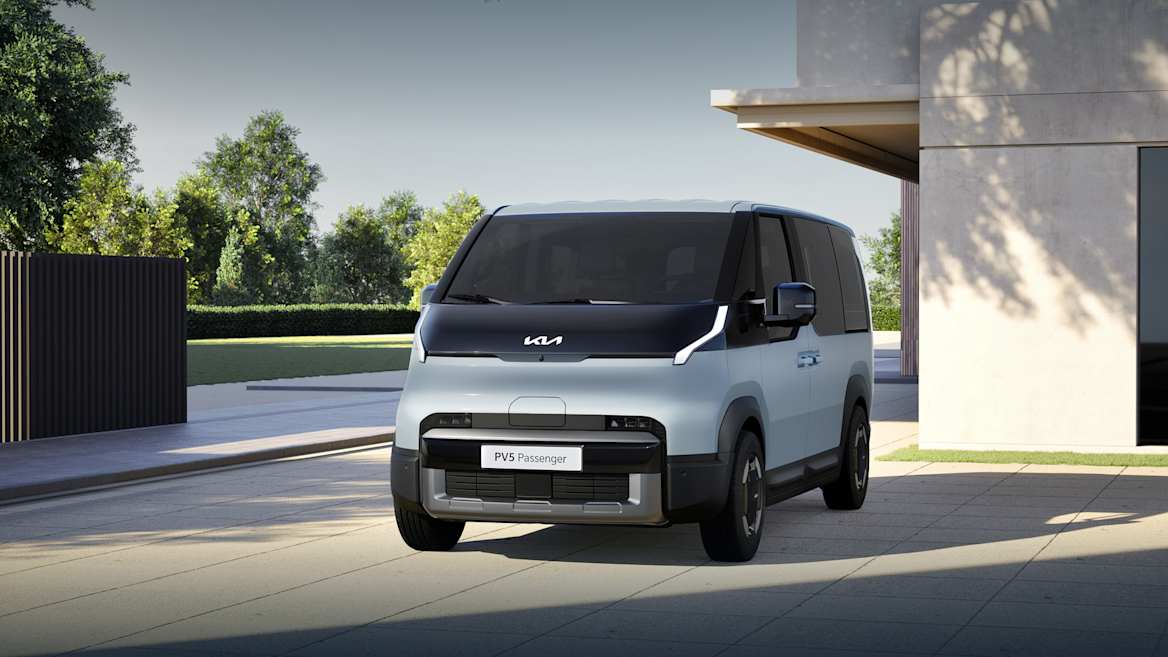

Kia PV5 WAV — wheelchair accessible electric vehicle

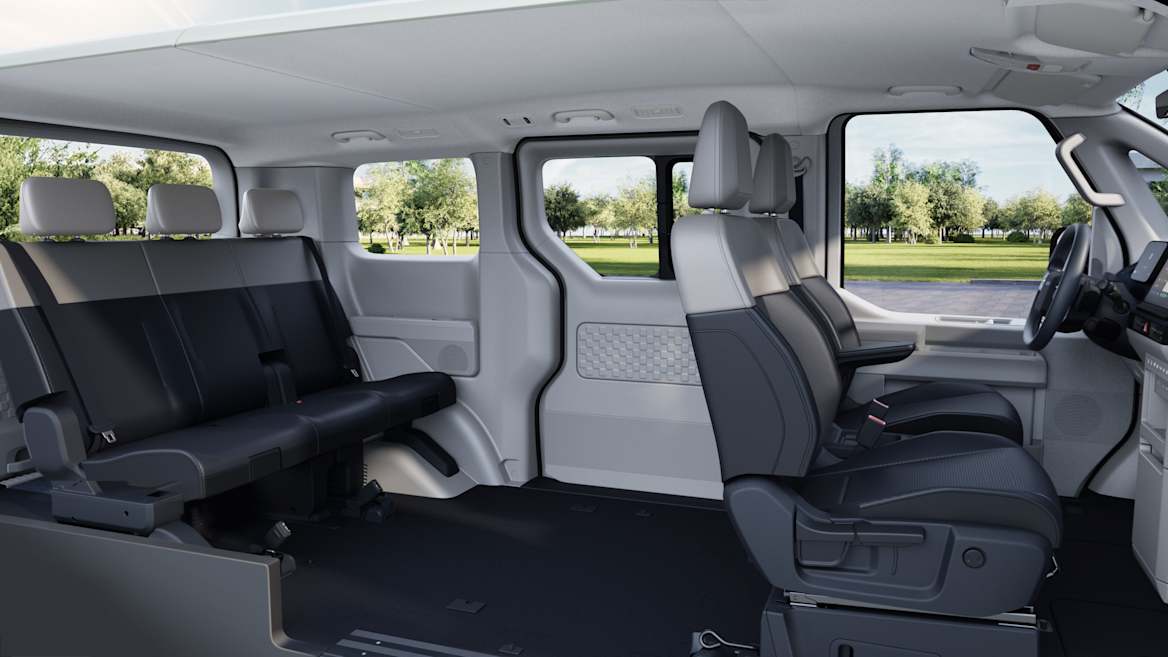

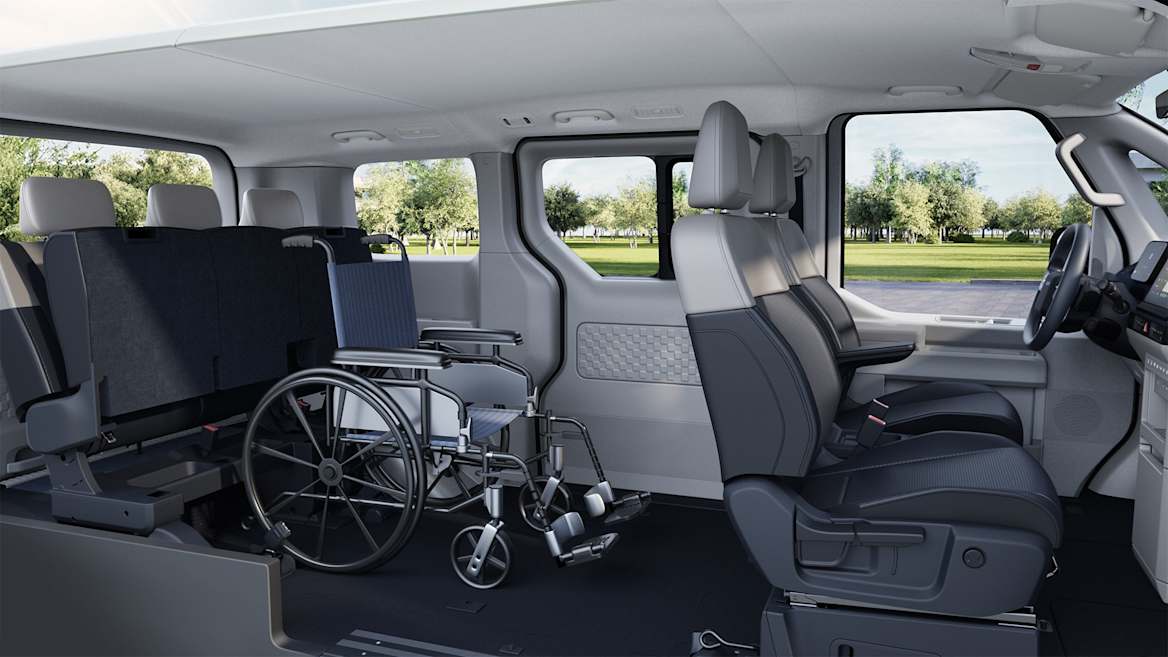

Kia PV5 WAV side-loading ramp deployedKia PV5 WAV accessible interior

Full Specification

Accessibility

Ramp TypeSide-loading
Ramp CapacityOver 300 kg
Belt SystemUniversal wheelchair fastening
Floor ProfileFlat (no tunnel)
ConversionFactory-built by Kia
Access DoorSide sliding door
CompatibilityAny wheelchair type
WarrantyFull Kia 7yr / 100k

Dimensions

Length4,695 mm
Width1,895 mm
Height1,905 mm
Wheelbase2,995 mm
PlatformE-GMP.S (dedicated EV)
Rear AccessLift-up tailgate
Body IntegrityUnmodified structure
Starting PricePricing on application

Charging & Performance

Battery (SR)51.4 kWh
Battery (LR)71.2 kWh
Range (SR / LR)183 / 256 miles
DC Charge Rate150 kW
10–80% DC TimeUnder 30 min
AC Charge Rate11 kW
Motor Power163 PS
Torque250 Nm

Register Your Interest

The PV5 WAV is a factory-built conversion in Essential and Plus trim. SR or LR battery. Pricing to be confirmed — contact Westdrive PBV.

Designed With Dignity

The PV5 WAV is built from the ground up for accessible transport — not adapted from a vehicle never meant for it.

7 Yr

/ 100,000 Mile Warranty

Side-Loading Ramp

The integrated side ramp deploys smoothly for fast, dignified wheelchair access. Rated for over 300 kg, it supports power wheelchairs and heavy-duty mobility equipment.

Universal Belt Fastening

The four-point wheelchair restraint system secures any wheelchair configuration safely and quickly, without requiring specialist adaptors for different chair types.

Flat Floor Architecture

The E-GMP.S platform’s naturally flat floor eliminates the floor drops required in converted petrol vehicles, preserving structural integrity and providing a level transfer surface.

Zero Tailpipe Emissions

100% electric, making it ideal for hospital transport, care services and urban mobility operators where clean air and low running costs are a priority.

Highway Drive Assist

Adaptive cruise with lane-centring supports drivers on longer care routes, maintaining consistent, smooth driving for passengers who rely on careful vehicle control.

Full Kia Warranty

As a factory-built conversion, the PV5 WAV carries the full Kia 7-year / 100,000-mile warranty without the exclusions typical of third-party WAV conversions.
